A garage door uses a limit switch to know when to stop moving. It helps prevent the door from going too far or closing too hard. It is a small but essential part inside the opener that allows the door to work safely and smoothly every time.
In this comprehensive guide, we’ll explore how a limit switch on garage door mechanisms functions, why it’s essential for safety and efficiency, common problems that arise, and how to troubleshoot or replace it when necessary. Understanding this helps keep your door functioning properly and protects your home from damage.

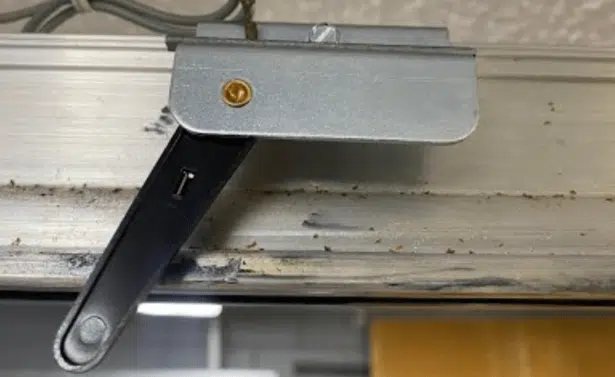

What Is a Limit Switch on a Garage Door
A limit switch is a small part that tells your garage door when to stop moving. It helps the door stop at the right spot when opening or closing. Without it, the door might slam or go too far, causing damage.
Limit switches come in two types: mechanical and electronic. Mechanical ones use a small button or lever to stop the door from closing. Electronic switches use sensors to determine the position of the door. Both types help ensure your garage door functions properly and remains safe.
This small part helps prevent damage to your garage door and motor. It prevents the door from slamming or stressing the opener. Checking the limit switch often can help avoid big garage door repairs and make your garage door last longer.
How Does a Limit Switch on Garage Door Systems Work
The limit switch on garage door openers is typically located near the motor unit. Here’s a simple step-by-step look at how it works:
1. Signal Activation
When you press the garage door remote or wall button, it sends a signal to the opener’s motor. The motor begins to operate, causing the door to move along its tracks. This action initiates the opening or closing process, ensuring your garage door operates smoothly and efficiently.
2. Position Detection
As the garage door moves, the limit switch monitors its position to ensure it doesn’t go too far. This helps the system know when to stop the door at the right spot.
3. Cutoff Trigger
When the garage door reaches the full open or closed position, the limit switch tells the motor to stop. This prevents the door from swinging too far or becoming damaged. It’s an important step that protects your garage door and helps it last longer.
Why the Limit Switch on Garage Door Systems Matters
The limit switch is a small but important part of your garage door system. It helps the motor stop at the right time and keeps things working safely.
1. Prevents Motor Overload
The limit switch on garage door openers helps stop the motor once the door reaches the right spot. Without it, the motor keeps running, which can cause it to overheat or break down early. This switch protects your garage door opener and extends its life.
2. Protects the Door and Hardware
A working limit switch prevents the garage door from slamming shut or opening too far. Without it, the door could slam down or damage the tracks. This simple part helps keep springs, panels, and other garage door hardware in good shape.
3. Enhances Safety
A broken limit switch can make the garage door unsafe. If the door doesn’t stop correctly, it could crush things underneath, including people or pets. A working switch keeps the door’s movement safe and under control, reducing the risk of accidents.
4. Improves Energy Efficiency
Garage doors that run too long use more electricity than needed. A properly set limit switch stops the motor at the right time. This helps save energy, reduces wear on the opener, and makes your garage door system more efficient over time.
Problems with a Limit Switch on Garage Door Openers
Like any component, the limit switch on garage door systems can develop issues over time. Here are some common problems:
1. Misadjusted Limits
If your garage door stops too early or continues to move after it should have stopped, the limit switch may be incorrectly set. This is usually fixed by adjusting the screws or sensors on the opener. A quick recalibration can restore proper garage door movement and safety.
2. Worn-Out Contacts
Over time, the contacts inside mechanical limit switches can wear down. This can cause the garage door to stop at the wrong spots. If you notice this happening frequently, it’s likely time to replace the limit switch for improved control and smoother operation.
3. Faulty Wiring
Loose, damaged, or disconnected wires can prevent the limit switch from working. If the garage door doesn’t stop right, take a look at the wiring. Fixing a simple wire issue can restore the switch’s ability to send signals to the opener and prevent the door from closing too late.
4. Sensor Obstruction (For Electronic Switches)
Electronic garage door openers may use optical or magnetic sensors. If dirt or debris blocks them, or if they’re out of line, the door can act strangely. Cleaning and realigning the sensors is often all it takes to fix the issue and restore performance.
How to Adjust or Replace a Limit Switch on Garage Door Systems
If your garage door isn’t stopping correctly, adjusting or replacing the limit switch on the garage door mechanisms may be necessary. Here’s how:
Adjusting a Mechanical Limit Switch
- Locate the adjustment screws (usually labeled “Open” and “Close” on the opener unit).
- Turn the “Open” screw clockwise to decrease the travel distance or counterclockwise to increase it.
- Repeat for the “Close” setting.
- Test the door and fine-tune as needed.
Replacing a Faulty Limit Switch
- Disconnect power to the garage door opener.
- Remove the old switch (consult your opener’s manual for specific steps).
- Install the new switch and reconnect the wiring.
- Recalibrate the limits as described above.
Keep electronic sensors clear, properly aligned, and free of dirt.
When to Call a Pro for Roller Shade Repairs
While many limit switch issues on garage doors can be DIY-fixed, some situations require a garage door repair expert’s attention:
- The motor continues running despite adjustments.
- The door reverses unexpectedly (could indicate a safety sensor issue).
- You’re uncomfortable working with electrical components.
A professional technician can diagnose and resolve complex problems safely.
Frequently Asked Questions
What is the limit switch on a garage door?
The limit switch on a garage door controls how far the door opens and closes. It tells the opener when the door has gone far enough. If the switch is set wrong, the door might not fully open or close, or it may reverse unexpectedly.
How do I reset my garage door limit switch?
To reset the limit switch, find the “up” and “down” screws on the opener. Turn them slightly to change how far the door moves. After each change, test the door. Keep adjusting until the door opens and closes at the right spots.
Where is the garage door limit switch located?
You’ll often find the limit switch near the top of the motor unit on the opener. Look for two small screws or dials marked “up” and “down.” These are used to set how far the door opens and closes during operation.
What is the purpose of a door limit switch?
A garage door limit switch stops the door at the correct spot when it opens or closes. It protects the motor and prevents the door from going too far. A correctly set switch helps the door run safely and smoothly every time.
What is the main purpose of a limit switch?
The main purpose of a limit switch is to control movement by stopping a device at a set point. In garage doors, it tells the opener when to stop. This keeps the door from slamming shut or opening too high, protecting the system and your property.
Conclusion
Your garage door functions properly when each part performs its intended role. The limit switch on garage door systems is key to stopping it at the right spot. Regular checks and simple fixes keep your door running smoothly, helping you avoid costly problems and breakdowns in the future.
